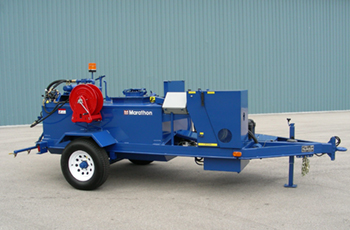

UPS200T

 Heavy duty channel iron frame.
 Long lasting all welded construction.
 Industrial grade axle with leaf spring suspension
and electric brakes.
 Adjustable hitch with 3” pintle eye and safety
chains.
 Thick sheet metal panels exceed the standard
used in competitive products.
 2” material dispensing valve.
 Easy to read material thermometer.
 Low center of gravity for safe towing, superior rear
visibility and ease of operation.
 Burner easily accessible for lighting and service.
 Large 18” manhole provides easy access to
material vat.
 10” diameter filler lid.
 Fully adjustable, heavy duty, external pressure
relief valve.
 Direct drive pumping system eliminates the need
for belts and clutches.
 Well insulated material vat and firing chamber
provides optimum fuel economy.
 Generous 10 gallon flushing tank for easy clean
out.
 Standard 40ft. high pressure material hose with ¼
turn control valve on a 5ft spray wand.
 Conveniently located adjustable screw type jack.
 Exhaust stack with rain cover.
 100lb. propane bottle holder comes complete with
hold down straps.
 All necessary stop, turn and marker lights.
 Increased corrosion resistance with epoxy primer
and standard blue paint finish.

Options
 Skid mounted – no chassis.
 18 gpm and 25 gpm pumping system with appropriate engine upgrade
 Hand wand re-circulation plumbing reduces flushing requirements.
 Additional spray wand with hose.
 6ft. or 8ft. spray bar (requires pump upgrade)
 Automatic temperature control.
 200,000 BTU hand held vapour propane torch with 15ft. hose.
 Electric breakaway switch with battery.
 Hydraulic surge brakes.
 Hydraulic pumping system, forward and reverse.
 Diesel fired heating systems.
 10lb. fire extinguisher with bracket.
 Hose reel.
 12 gallon recovery tank.
 2” adjustable ball hitch.
 Cab controlled, air operated spray bar assembly with or without
compressor.
 Spare tire and rim
 Customer’s choice of standard paint colours.

MODELS UPS200T UPS300T
Shipping Weight 1500lbs (681kg) 2160lbs (908kg)
Overall Length 136” (345cm) 182” (462cm)
Overall Width 65” (165cm) 80” (203cm)
Overall Height 78” (198cm) 64” (163cm)
Loading Height 46” (116cm) 47” (119cm)
Capacities 200 gal (756 L) 300 gal (1134 L)
Engine 5.5 Honda 5.5 Honda
Pump 10 gpm 10 gpm
Burner One 410,000 BTU One 410,000 BTU
with out-fire protection with out-fire protection
Axle(s) Single Single
Capacity 5200lbs (2363kg) 5200lbs (2363kg)
Tires – size (2) 225/75/R15 (2) 225/75/R15
* Specifications subject to change without notice.
