Model 4-RAH-12
|
|
Item Number: 4-RAH-12
Manufacturer: Miro Industries
|

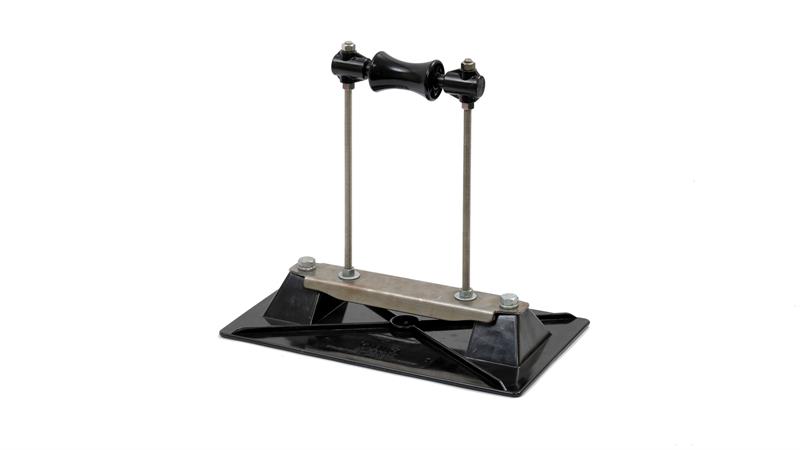

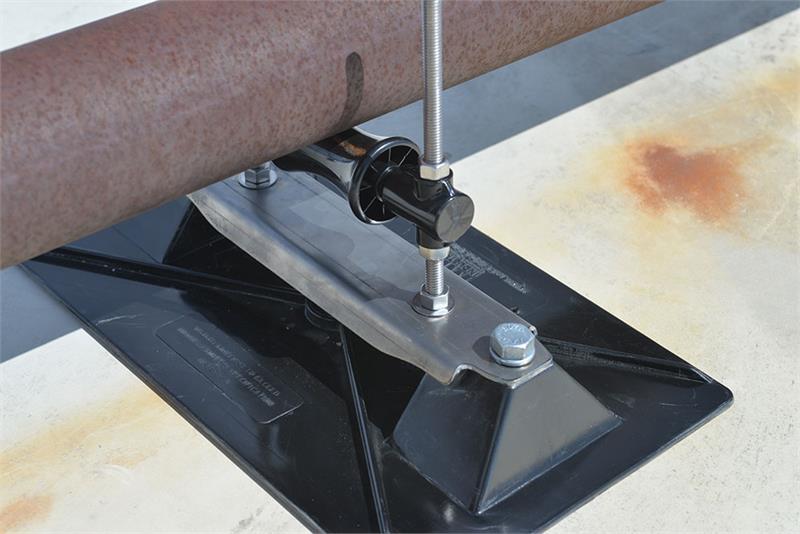

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 4″ pipe (inside diameter) or up to 4 1/2″ (outside diameter) pipes.
Base Material:
Polycarbonate
Size:
The deck base is 9″ by 15 1/4″ and has a maximum cradle width of 4″.
Max Pipe Size:
4″ inside diameter and 4.5″ outside diameter.
Max Pipe Clearance:
The 4-RAH-12 can adjust in height from a low of 4.5″ to a high of 12″ in elevation above the roof membrane.
Max Load Weight:
Maximum load weight may not exceed 186 lbs. per pipestand.
Spacing:
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.
|
|
|
