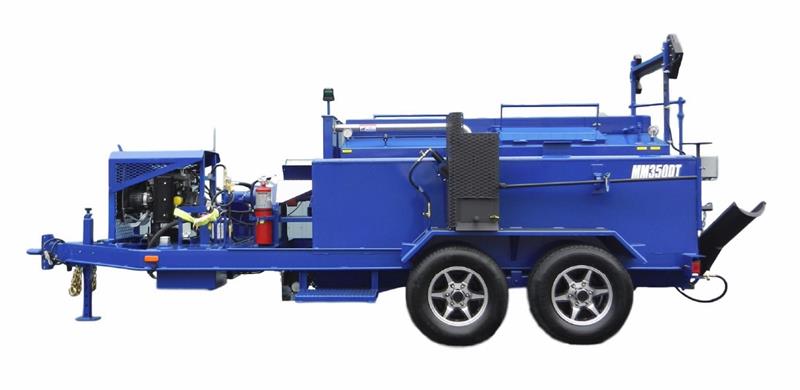

MM350DT

Designed to mix mastic repair and bridge joint materials. Heavy duty construction allows mixing of heavy material mixed with aggregate. Diesel and propane models available in 120, 250 and
350 gallon capacities.

Body
 Minimum 10 gauge material construction.
 Heavy gauge steel construction for material and oil vats.
 Elongated material and oil vat providing a large heating
surface area.
 Low loading height for operator safety.
 Dual, reverse load, anti-splash doors provide ease of material
distribution in material vat.
 Thick insulation retains heat to minimize heat loss.
 Large volume of heat transfer oil to improve heat retention.
 Material and oil thermometers.
 6” diameter rear discharge port with guillotine dispensing gate.
 10lb fire extinguisher.
 Epoxy primer prior to top coat finish.

Heating System
 Dual diesel burners with remote mounted, solid state
controls, with diagnostic capabilities.
 Standard automatic temperature control for both material
and oil bath.
 Dual digital thermostats – for oil and material ensure precise
control and show actual temperatures.
 Burner flame out protection.
 Unique ceramic lined heating chamber, with Inconel heat
deflection.
 Dual 1500W electric heaters.
 Auxiliary 200,000 BTU hand held torch mounted at rear,

Trailer
 6” channel steel construction.
 All stress points gusseted with ¼” steel plate.
 Heavy duty slipper spring construction with tandem drop
axles to reduce center of gravity for safer towing.
 3” adjustable pintle hook.
 LED lights.
 Heavy duty top wind jack.
 Electric breakaway switch with battery.
 Dual electric brakes.

Options
 Heated square shoveling platform.
 12” steel flat squeegee.
 18” steel “U” squeegee.
 Hydraulic surge brakes.
 Burner indicator light.
 Amber strobe light.
 2” or 3” sealant pouring spout.
 Customer’s choice of standard paint colour.
 Heated chute
 Hydraulic discharge gate.
 Spare tire & rim.

Agitation
 Six blade, bi-directional, variable speed agitator provides
excellent material mixing, keeping aggregate in suspension.
 Agitator blades are gusseted for strength.
 Progressively pitched blades allow the operator to control
discharge speed at the gate.
 High torque agitator provides fast mixing of material.
 Agitator stops rotating when either of the loading doors are
opened.

MODELS MM350DT
Shipping Weight 7,146lbs (3241kg)
Dimensions
Overall Length 222” (564cm)
Overall Width 80” (203cm)
Overall Height 70” (178cm)
Loading Height 57” (145cm)
Delivery Chute Height 23” (58.4cm)
Capacities
Material Vat 350 gal (1323 L)
Heat Transfer Oil 58 gal (219 L)
Diesel Fuel Tank 28 gal (105L)
Hydraulic Oil Tank 14 gal (53L)
Engine 23hp liquid cooled, electric
Start, Kohler diesel
Burner Two 340,000 BTU
Diesel burners
Suspension
Axle(s) Tandem
Capacity 14,000bs (6349kg)
Tires – size (4) 235/80/R16
*specifications subject to change without notice
