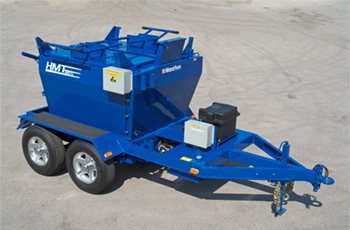

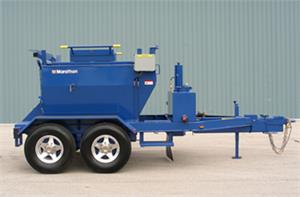

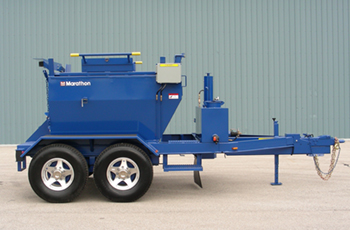

HMT4000T/OJ / 6000T/OJ

• Heavy-duty channel iron frame.
• Industrial tandem axles complete with slipper spring suspension and electric brakes.
• Adjustable pintle hitch complete with 3” pintle eye and safety chains.
• Heavy-duty screw type swivel trailer jack.
• Fully insulated compartments including loading and unloading doors to minimize heat loss.
• Loading doors act as a loading chute.
• Rear mounted temperature thermometers with protective hoods for material and oil.
• 300,000 BTU vapour propane burner with auto ignite automatic temperature control and flame-out
protection.
• Heating system controls contained in a weatherproof box with quick access latches.

• Material hopper is heated by an under fired, baffled oil jacket to improve heat distribution,
eliminate hot spots and reduce burner cycling.
• 120 volt 1500 watt overnight heater to reduce start up time and keep material warm.
• Centrally located, horizontal heat grid allows for heat transfer through the material.
• Rainproof exhaust stack.
• (2) tool holders
• All necessary stop, turn and marker lights.
• Units receive primer coat prior to finish coat.
• Standard paint color is epoxy blue.

Options
 Electric breakaway switch with battery
 10 lb. fire extinguisher
 Strobe light
 Slow moving vehicle sign
 Flashing arrow stick traffic advisor.
 200,000 BTU hand held propane torch kit.
 Additional propane bottle holder.
 Hydraulic surge brakes
 30-gallon cold or heated tack tank.
 Gas powered tack sprayer.
 Diesel fired heating system.
 Extended trailer with storage area.
 8 gallon rinse tank
 Tool box
 LED trailer lights
 Spare tire and rim assembly
 Customers choice of standard paint colour

Specifications HMT4000T/OJ HMT6000T/OJ
Shipping Weight 4,165 lb (1889 kg) 5,092 lb (2310 kg)
Capacities
Hot Mix Chamber 4,000 lb (1814 kg) 6,000 lb (2721 kg)
Heat Transfer Oil 26 gal 38 gal
Dimensions
Overall Length 163” (414 cm) 177” (449 cm)
Overall Width 80” (203 cm) 93” (236 cm)
Overall Height (closed) 76” (193 cm) 78” (203 cm)
Hopper Opening 52” L x 67” W 60” L x 76” W
Top Loading Doors (2) 55” L x 28” W (2) 63” L x 32” W
Rear Unloading Door 17” H x 18” W 17” H x 30” W
Shoveling Platform 28” from ground 30” from ground
Heating System
Propane burner One 300,000 BTU vapour One 300,000 BTU vapour
burner with flame-out burner with flame-out
protection and ATC. Protection and ATC.
Hopper Insulation 2” fiberglass – side walls & top 2” fiberglass – side walls & top
1” ceramic – fire chamber 1” ceramic – fire chamber
Brakes Electric on lead axle Electric on lead axle
Suspension
Axle Heavy-duty tandem Heavy-duty tandem
Capacity 10,400 lb (4727 kg) 14,000 lb (6350 kg)
Tires (4) 225/75R15 (4) 235-85R16
Specifications are subject to change without notice.
