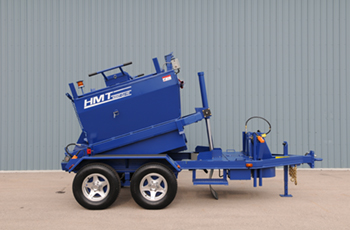

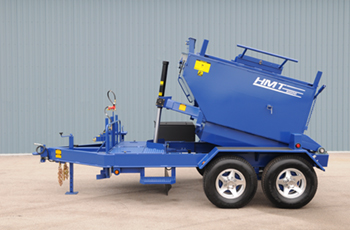

HMT4000T/HD / 8000T/HD

Trailer
• Heavy-duty channel iron frame construction.
• Non-slip access step with handle.
• Industrial tandem axles complete with slipper spring suspension and electric brakes.
• 10 gauge steel fenders, fixed to frame – do not tilt with load.
• Two 100 lb. propane bottle holders protected inside the frame and will not tilt with the
hopper unit.
• Adjustable pintle hitch complete with 3” pintle eye and safety chains.
• Heavy-duty screw type swivel trailer jack.
• All necessary stop, turn and marker lights.

Tilt System
• Dual control stations for hydraulic unit for safety.
• 7 Ton hydraulic cylinder safely raises the hopper and comes with self contained power pack.
• Adjustable speed control is provided for lowering the hopper while compensating for
variances in load weight.
• 12 volt deep cycle battery system with charger comes in lockable weather resistant
compartment.
• Hopper pivots on heavy duty hinge pins supported with four pillow block bearings.
• Removable safety support bar for maintenance.
• Alarm sounds whenever tilt system is operated.

Hopper
• Triple wall construction with air baffles to distribute heat evenly. 10 gauge panels are
reinforced with 6” steel channel.
• Fully insulated compartments including loading and unloading doors to minimize heat loss.
• Loading doors act as a loading chute.
• Rear mounted temperature thermometer with protective hood.
• Burner automatically shuts off when the hopper is raised.
• Two fully insulated top loading doors with telescopic loading handles and rear safety latch to
prevent doors opening when tilted.
• Sliding rear unloading door(s) with vertical adjustment.
• Heated shoveling platform height is maintained even when the box is tilted.
• Rainproof exhaust stack.
• Deflectors prevent spilled asphalt from accumulating between frame members.
• Tool holders.

Options
• Oil jacketed material hopper on 2 ton model only.
• Electric breakaway switch with battery.
• 10 lb. fire extinguisher.
• Strobe light.
• Slow moving vehicle sign.
• Flashing arrow stick traffic advisor.
• 200,000 BTU hand held propane torch kit.
• Additional propane bottle holder.
• Hydraulic surge brakes.
• 30-gallon cold or heated tack tank.
• Gas powered tack sprayer.
• Diesel heating system with automatic temperature control.
• 8 gallon rinse tank.
• Tool box.
• LED trailer lights.
• Spare tire and rim assembly.
• Customers choice of standard paint colour with epoxy primer.
• factory to discuss options available with each model.

Specifications HMT4000T/HD HMT8000T/HD
Shipping Weight 3,800 lb (1723 kg) 5,680 lb (2486 kg)
Capacities
Hot Mix Chamber 4,000 lb (1814 kg) 8,000 lb (3629 kg)
Dimensions
Overall Length 165“ (419 cm) 190” (482 cm)
Overall Width 81” (205 cm) 93” (236 cm)
Overall Height (closed) 76” (193 cm) 83” (211cm)
Hopper Opening 50” L x 69” W 70” L x 76” W
Top Loading Doors (2) 53” L x 26” W (2) 73” L x 31” W
Rear Unloading Door 17” H x 18” W (2) 17” H x 18” W
Shoveling Platform 28” from ground 29” from ground
Heating System
Vapour propane burner One 300,000 BTU burner with One 300,000 BTU burner
with flame-out protection & flame-out protection &
auto ignite temperature auto ignite temperature
controller. controller.
Hopper Insulation: 2” fiberglass – side walls/top 2” fiberglass – side walls/top
1” ceramic – fire chamber 1” ceramic – fire chamber
Brakes Electric on lead axle Electric on lead axle
Axle Heavy-duty tandem Heavy-duty tandem
Capacity 10,400 lb (4727 kg) 14,000 lb (6350 kg)
Tires (4) 225/75R15 (4) 235/85R16
