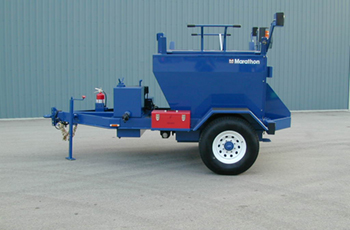

HMT4000T/8000T

This 4 ton capacity asphalt hauler is a heavy duty, fully insulated asphalt hauler complete with heated shoveling platform. This unit meets all requirements to keep your patch crew productive, while maintaining the proper temperature of the patching material.

• Heavy-duty channel iron frame.
• Long lasting all welded construction.
• Industrial grade axle with slipper spring suspension and electric brakes.
• Adjustable hitch with 3” pintle eye and safety chains.
• Thick sheet metal panels exceed the standard used in competitive products.
• Fully insulated hopper.
• Safety burner easily accessible for lighting and service.
• Guarded, easy to read material thermometer.
• Heated shoveling platform.
• Ergonomically designed telescopic handles lock open to safely form a chute for loading of hot
mix material.
• Heavy duty adjustable guillotine style material unloading door(s).
• Ease of unloading is assisted by the hopper shaped design of the material bin.
• Conveniently located tool holders.
• 100lb propane bottle holder comes complete with hold down straps.
• Conveniently located heavy duty, adjustable screw type jack.
• All necessary stop, turn and marker lights.
• Increased corrosion resistance with epoxy primer.

Options
• Skid mounted – no chassis.
• Diesel fired heating system.
• Automatic temperature control.
• 200,000 BTU hand held vapour propane torch with 15 ft. hose.
• 30 gallon tack tank, heated or non-heated.
• Electric overnight heater.
• Electric breakaway switch with battery.
• Hydraulic surge brakes.
• 10lb. fire extinguisher with bracket.
• Heat grid to improve heat distribution throughout the mix.
• Gas powered tack sprayer
• Rinse tank.
• Strobe light.
• Toolbox.
• Slow moving vehicle sign.
• Customer’s choice of standard paint colour.

Specifications HMT4000T HMT8000T
Shipping Weight 2400 lb (1,088 kg) 4250 lb (1928 kg)
Capacities
Hot Mix Chamber 4000 lb (1814kg) 8000 lb (3629 kg)
Dimensions
Overall Length 137” (347 cm) 172” (437 cm)
Overall Width 81” (205 cm) 93” (236 cm)
Overall Height 78.5” (199 cm) 83” (211 cm)
Hopper Opening
Width 63.5” (161 cm) 56” (142 cm)
Length 50” (127 cm) 71” (180 cm)
Rear Unloading Door 17” H x 18” W (2) 17” H x 18” W
Shoveling Platform
Height from Ground 29” (74 cm) 28” (71 cm)
Width 20” (50 cm) 54” (137 cm)
Depth 18” (46 cm) 15” (38 cm)
Heating System
Propane Burner 300,000 BTU vapour 300,000 BTU vapour
propane burner with propane burner with
flame-out protection flame-out protection
Suspension
Axle Single Tandem
Capacity 7,000 lb (3182 kg) 14,000 lb (6350 kg)
Tires (2) 235/85R16 (4) 235-85R16
Specifications are subject to change without notice.
