Electric Melters
|
|
|
100% Electric Rubberized Asphalt Melters
Available in 60, 100 & 200 Gallon Models
- No open or enclosed flame on rooftops.
- Built to match the speed and efficiency of our propane fired melters
- No gas, propane or diesel needed on the roof.
- Very precise control of heat distribution by means of computerized controllers controlling many parameters such as heating elements. (% of power to rising temperature)
- Safety features include high limit controller which shut the machine down if temperature rises above factory preset. (Material manufacturers recommended temp.)

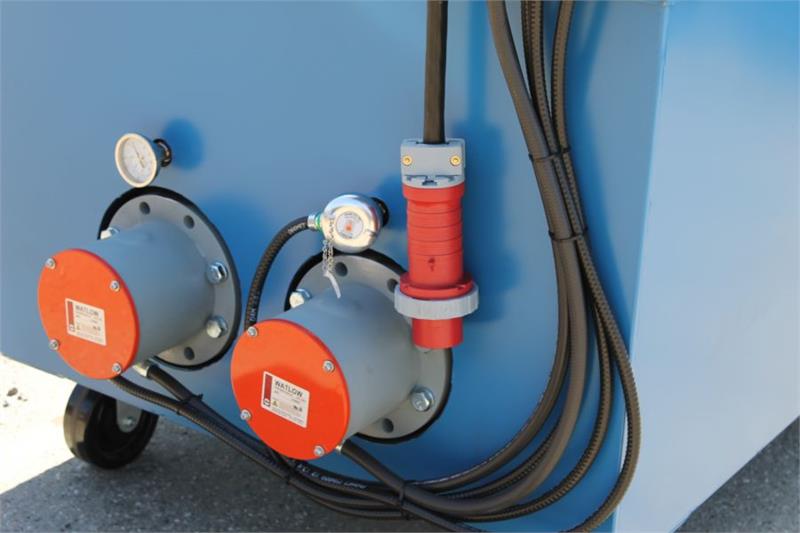

- All electrical components are Watlow products which are UL and CSA approved, such as our tubular flange electric heaters.
- High limit controllers are factory mutual approved. (Used in New York City with vent less deep fat fryers)
- All electrical components are protected with proper breakers and installed by a qualified electrician.
- Machines are heavy duty and compact as to get on rooftops easily.
- Material agitators are electrical powered and require no fuel to run them.
- Components are designed with forward thinking capabilities. (Alarm and a wireless temperature monitoring communications system)
- Because the Electric melter does not use any fossil fuels it has a far less negative impact on the environment than any other melter on the market today.
Our 100% Electric melters come equipped with electric heater elements, electric drive system for the agitator and a factory programmed, easy to use temperature regulator and safety system .
Our electric melters run on 480 Volt 3 phase power, which can be made available via an existing on site hook up or through the rental or a portable/towable generator set. Contact us for details concerning power usage and rental options in your area. 220 Volt single phase also available.
SPECIFICATIONS: NEXT GENERATION HIGH PERFORMANCE A-210 Electric
|
| Capacity |
200 US Gallons |
| Agitator |
110 V Electric |
| Overall Dimensions (Melter Only) |
L-94″ W-48″ H-63″ 2,100 lbs |
| Burner |
480 V- 3 PH 60 Amp Total (2 x 30 Amp 6″ 21 KWH Flanged Electric Elements) |
| Temperature Controls |
Comes Standard with all Safety Options Installed |
| Inner Shell |
1/4″ Rolled Steel |
| Outer Shell |
1/8″ Rolled Steel |
| Insulated jacket |
1/2″ High Temp. Fiberglass. Plus 2″ High Temp. Fiberglass |
| Pump |
Optional 1 1/2″ Electric Viking Pump |
| Optional Trailer (w/ Melter mounted) |
L-134′ W-71″ H-71″ 2,675 lbs |
| Brakes |
Electric Standard |
| Tow Hitch |
As ordered c/w safety chain |
| Shipping Weight (Melter only) |
2125 lbs |
| Shipping Weight (trailer only) |
550 lbs |
| Horizontal Wand Pumping System |
Optional |
SPECIFICATIONS: Upgraded super fast A-110 Electric
|
| Capacity |
100 US Gallons |
| Agitator |
110 V Electric |
| Overall Dimensions (Melter Only) |
L-89″ W-34″ H-45″ 1,500 lbs |
| Burner |
480 V, 3 PH 35 Amp Total (2 x 17.5 Amp 5″ 12 KWH Flanged Electric Elements) (or 220 V, SPh 80 Amp Total) |
| Temperature Controls |
Comes Standard with all Safety Options Installed |
| Inner Shell |
3/16″ Rolled Steel |
| Outer Shell |
1/8″ Rolled Steel |
| Insulated jacket |
1/2″ Super high temp 2″ High Temp. Fiberglass. |
| Pump |
Optional 1 1/2″ Electric Viking Pump |
| Optional Trailer (w/ Melter mounted) |
L-134′ W-71″ H-71″ 1,775 lbs |
| *Brakes |
Electric Standard |
| *Tow Hitch |
As ordered c/w safety chain |
| Shipping Weight (Melter only) |
1500 lbs |
| Shipping Weight (trailer only) |
275 lbs |
SPECIFICATIONS: A-60 Electric
|
| Capacity |
60 US Gallons |
| Agitator |
110 V Electric |
| Overall Dimensions (Melter Only) |
L-61″ W-34 H-45″ 1,250 lbs |
| Burner |
480 V, 3 PH 20 Amp Total (2 x 4″ 12 KWH Flanged Electric Elements) (or 220 V, SPh 45 Amp Total) |
| Temperature Controls |
Comes Standard with all Safety Options Installed |
| Inner Shell |
3/16″ Rolled Steel |
| Outer Shell |
1/8″ Rolled Steel |
| Insulated jacket |
1/2″ Super High Temp Plus 2″ High Temp. Fiberglass. |
| Shipping Weight (Melter only) |
1200 lbs |
|
|
|
