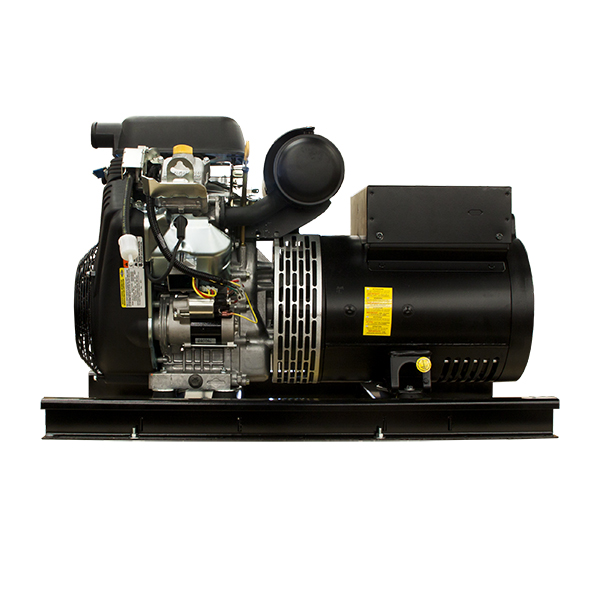

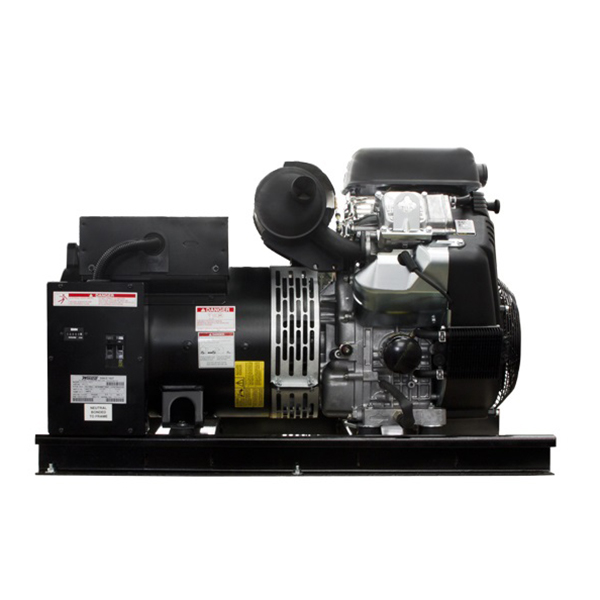

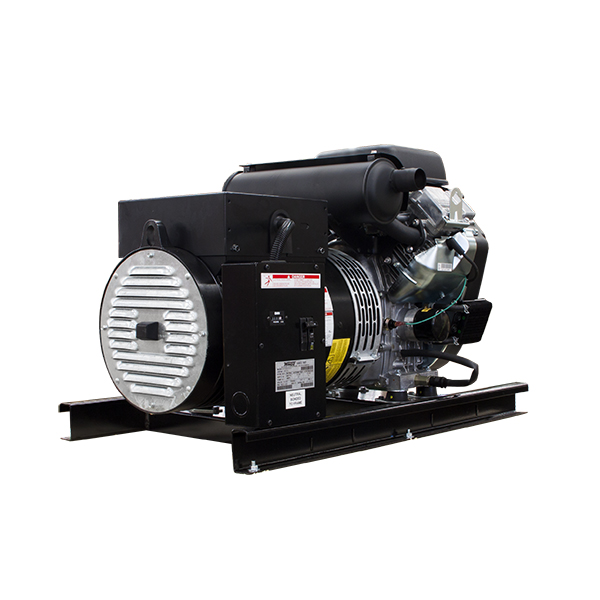

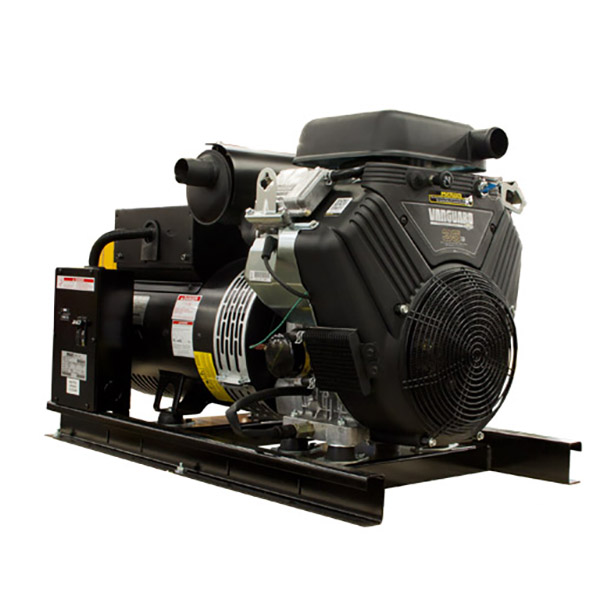

EC22000VE/A
|
|
Item Number: EC22000VE/A
Manufacturer: Winco
Manufacturer Part No: EC22000VE/A
|
There is nothing bigger than this. We checked. Our EC22 provides more running watts than any other air-cooled generator on the market. It is a great unit to add to vehicles and trailers that reduces cost and weight in comparison to liquid-cooled models.
Product Features

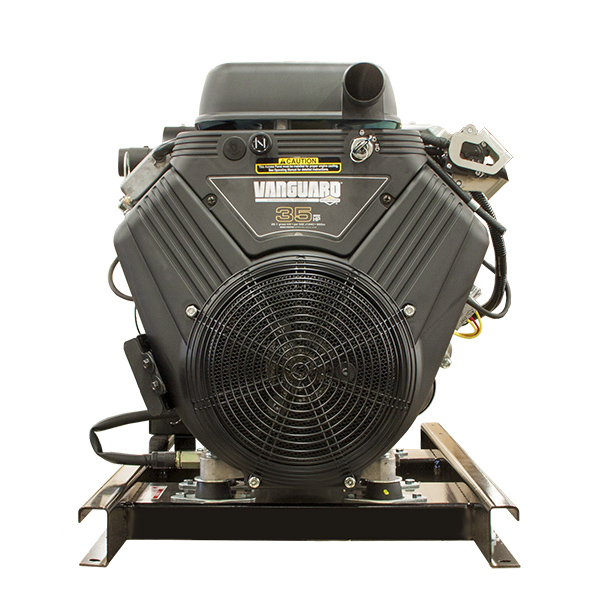

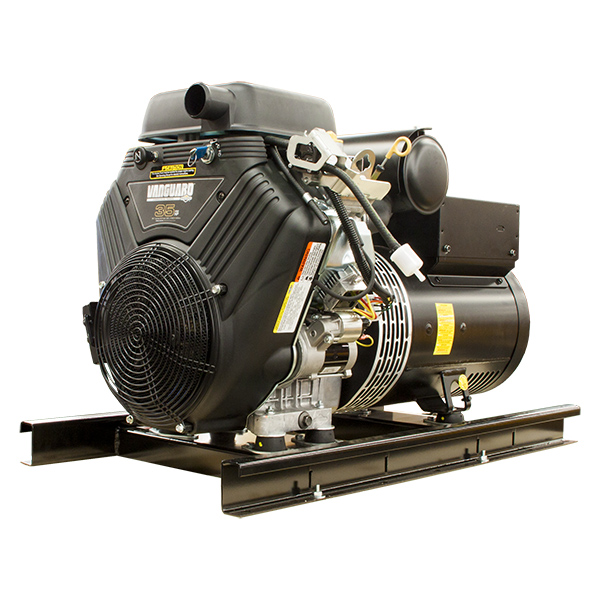

Briggs & Stratton Vanguard Engine
Premium-grade Vanguard engines are application-
engineered to power equipment that works for a living
Low Oil Protection
In the event of low-oil level, the engine will shut down,
which will protect the engine from damage.
Vacuum Fuel Pump
30″ fuel lift capability.
MAUX Auxiliary System
Ensures the generator end can withstand 300%
motor starting inrush for 20 seconds.
100% Load Tested
We load test every generator before it leaves our factory.
Additional Information
| Starting Watts |
22000
|
|---|
| Running Watts |
19000
|
|---|
| Running Amps |
120/240 1-Ph: 79
120/208 3-Ph: 65
120/240 3-Ph: 57
277/480 3-Ph: 28
|
|---|
| Voltage Regulation |
AVR +/-1.5%
|
|---|
| Engine |
Briggs & Stratton 993CC
|
|---|
| Dimensions |
38" x 21.5" x 25"
|
|---|
| Weight |
305 lbs.
|
|---|
| Unit Warranty |
2 Years
|
|---|
| Assembled In |
USA
|
|---|
|
|
|
