A&A Crack Sealers
|
|
Manufacturer: A&A Melters
|
Affordable Crack Sealing Equipment
All of A&A Melters Air-Jacketed Melters are now available with the Crack sealing option. These units are the most compact, lightweight and quickest Asphalt Crack Sealers on the market. Available on or off the trailer for tight spots with a 25 foot heated hose on a 360 degree swing boom with the option to go longer if needed. Call today for pricing on the most affordable crack sealers available. We can custom build to suit your needs
- Heated hose available in 120 Volt or 12 Volt
- Heated hose available with Heated or Non-heated wand
- Agitator and Pump can be powered by Electric, Gas or Diesel motors
- Heat sources available: Diesel, Propane or Electric elements
- Reverse flow to empty hose

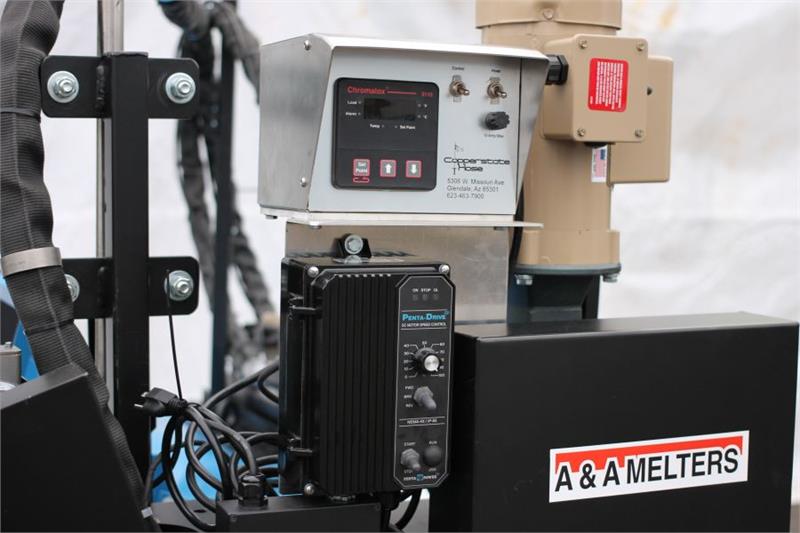

- Automatic temperature controls
- Available in 110, 210, 380 & 500 Gallon units
- Quick mount / Dismount trailer
- Variable speed pump for adjustable flow control
- Heavy duty Stainless steel fire tubes
SPECIFICATIONS: A-110 CRACK SEALER
Heat Transfer Oil ............None Required...........Fire tube.............4" SCH 80 Stainless Steel
Capacity (Custom Sizes Available) ............................................................... 100 US Gallons
Agitator..Honda 5.5 H.P. Air-Cooled Engine, 110 V Electric or Optional Yanmar 7.0HP Diesel
Overall Dimensions (Melter only) ....................................................... L-88" W-33 5/8" H-64"
Burner........Adjustable Liquid Propane 1 X 500,000 BTU or Optional Beckett Diesel Burners
Temperature Controls..Optional on Propane heated units, Standard on Diesel heated units
Inner Shell ............................................................................................... 3/16" Rolled Steel
Outer Shell ................................................................................................. 1/8"
Rolled Steel Insulated Jacket ........................................................................... 2" High Temp. Fiberglass
Shipping Weight (Melter only) .................................................................................2,000 lbs
Optional Trailer (w/Melter mounted) ....................................................... L-144" W-58" H-82"
Suspension 4" Drop Axle ............................................................. 3500 lb. Axle and Springs
Tires .............................................................................................................. 2 X 6.00 X 14"
Trailer Chassis ........................................................................................... 4" Steel Channel
Brakes ..................................................................................................................... Optional
Tow Hitch .................................................................................. As ordered c/w safety chain
Pump ..........................................................................................1-1/2" Viking Material Pump
Heated Hose System available in 12V or 120V with a 25' Heated hose, Heated wand optional
Shipping Weight (Trailer Mounted) ..........................................................................2,275 lbs.
|
|
|
