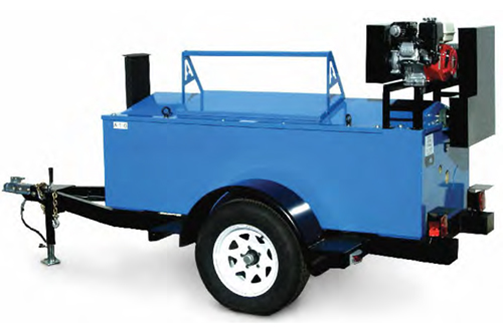

A&A A-110 Melter
|
|
Item Number: 0518
Manufacturer: A&A Melters
|
The A-110 is very versatile and can be transported easily in the back of a pick-up; can be hoisted directly to the roof. Easily accommodated in commercial elevators, the A-110 fits through standard 34″ doorways and can be equipped with optional casters for easy movement. Stainless steel fire tube comes standard.
Also optional: Quick mount/dismount trailer. Available with gas, electric or optional Diesel drive. Material ready in 40 minutes.
SPECIFICATIONS: A-110
|
|---|
| Heat Transfer Oil |
None Required |
| Fire Tube |
4″ sch 80 Stainless Steel Pipe |
| Capacity |
100 US Gallons |
| Agitator |
Honda 5.5 H.P. Air-Cooled Engine, 110 V Electric or Optional Diesel Engine |
| Overall Dimensions (Melter Only) |
L-88″ W-33 5/8″ H-45″ 1,500 lbs |
| Burner |
Adjustable Liquid Propane 1 X 500,000 BTU or Optional Beckett Diesel Burners |
| Temperature Controls |
Optional |
| Inner Shell |
3/16″ Rolled Steel |
| Outer Shell |
1/8″ Rolled Steel |
| Insulated jacket |
1/2″ Super high temp + 2″ High Temp. Fiberglass |
| Suspension 4″ Drop Axle |
3500 lb. Axle and Springs |
| Optional Trailer (w/ Melter mounted) |
L-146″ x W-58″ x H-66″ 1,775 lbs |
| Brakes |
Optional |
| Tow Hitch |
As ordered c/w safety chain |
| Shipping Weight (Melter only) |
1500 lbs |
| Shipping Weight (Trailer only) |
275 lbs |
| Pump |
Optional 1 1/2″ Viking |
| Horizontal Wand Pumping System |
Optional |
| Tires |
2 X 6.00 X 14″ |
| Trailer Chassis |
4″ Steel Channel |
Heated Material Output:
- Efficiency: 78.9%
- Material Capacity: 100 US Gallons | Output Aprox 80 gal/hr
- Heat up time: 40 mins
|
|
|
