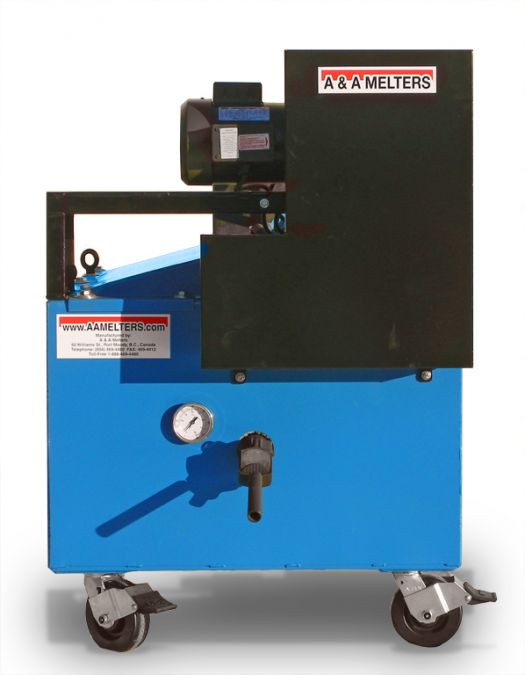

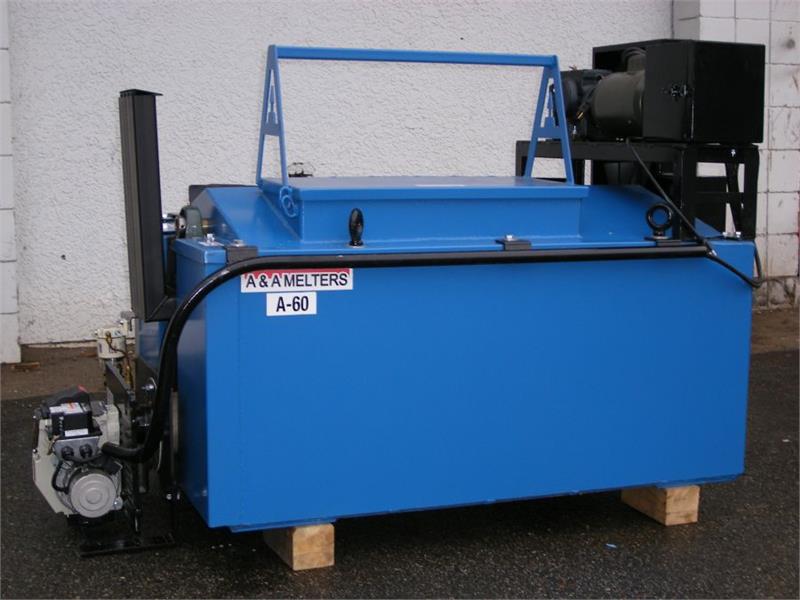

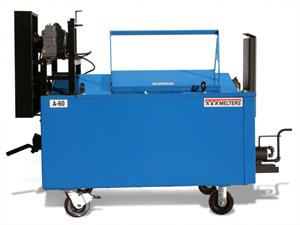

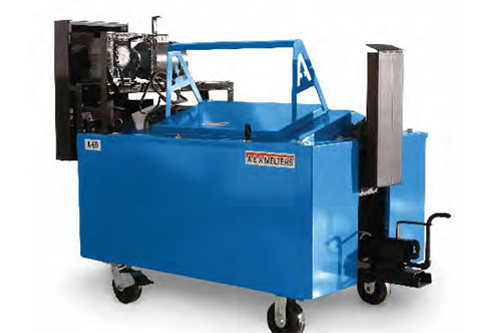

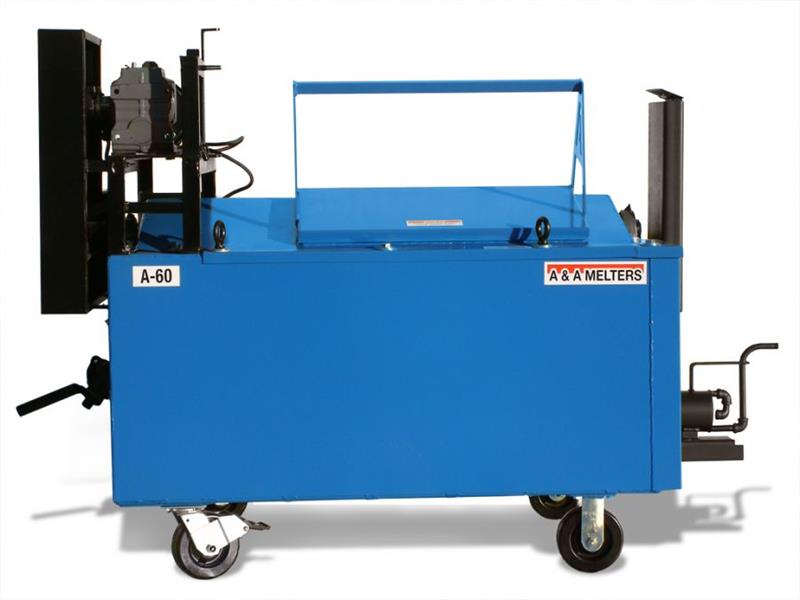

A-60 Melter
|
|
Manufacturer: A&A Melters
|
The A-60 is easily accommodated in commercial elevators, it fits through standard 34″ doorways and can be equipped with optional casters for easy movement. Available with gas or electric drive. Material ready in less than 30 minutes. Stainless steel fire tube comes standard.
The A-60 Melter is one step above our 40 gallon melter. It’s perfect for those in between jobs with the efficiency to match our larger melters.
SPECIFICATIONS: A-60
|
|---|
| Heat Transfer Oil |
None Required |
| Fire Tube |
4″ sch 80 Stainless Steel Pipe |
| Capacity |
60 US Gallons |
| Agitator |
Honda 4 H.P. Air-Cooled Engine, 110V Electric or Optional Diesel Engine |
| Overall Dimensions (Melter Only) |
L-59″ W-33 5/8″ H-45″ 1,250 lbs |
| Burner |
Adjustable Liquid Propane 1 X 500,000 BTU or Optional Beckett Diesel Burners |
| Temperature Controls |
Optional |
| Inner Shell |
3/16″ Rolled Steel |
| Outer Shell |
1/8″ Rolled Steel |
| Insulated jacket |
1/2″ Super High Temp. Plus 2″ High Temp. Fiberglass |
| Suspension 4″ Drop Axle |
3500 lb. Axle and Springs |
| Optional Trailer (w/ Melter mounted) |
L-11′ x W-58″ x H-66″ 1,525 lbs. |
| Brakes |
Optional |
| Tow Hitch |
As ordered c/w safety chain |
| Shipping Weight (Melter only) |
1250 lbs |
| Pump |
Optional 1 1/2″ Viking |
| Horizontal Wand Pumping System |
Optional |
| Tires |
2 X 6.00 X 14″ |
| Trailer Chassis |
4″ Steel Channel |
Heated Material Output:
- Efficiency: 78.9%
- Material Capacity: 60 US Gallons | 60 gal/.50 hr x 78.9% = 94.7 gal/hr
- Heat up time: 30 min’s (0.50 hr) | 358.4 L/.50 hr x 78.9% = 565.5 L/hr
|
|
|
