A-40 Melter
|
|
Manufacturer: A&A Melters
|

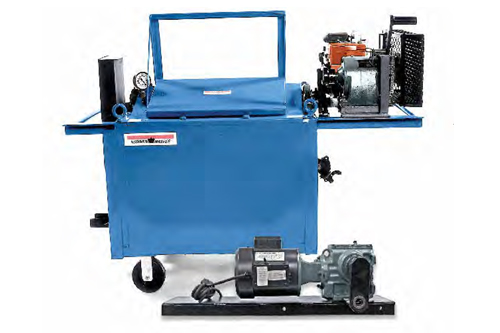

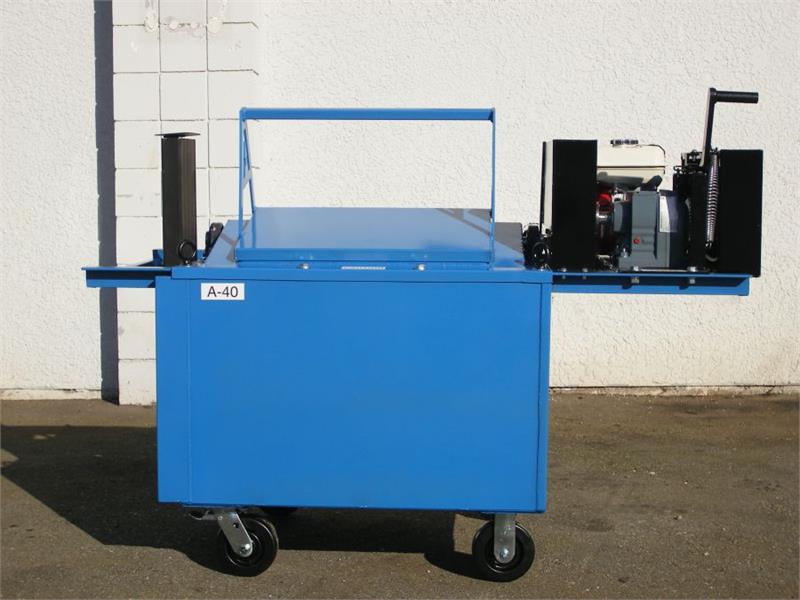

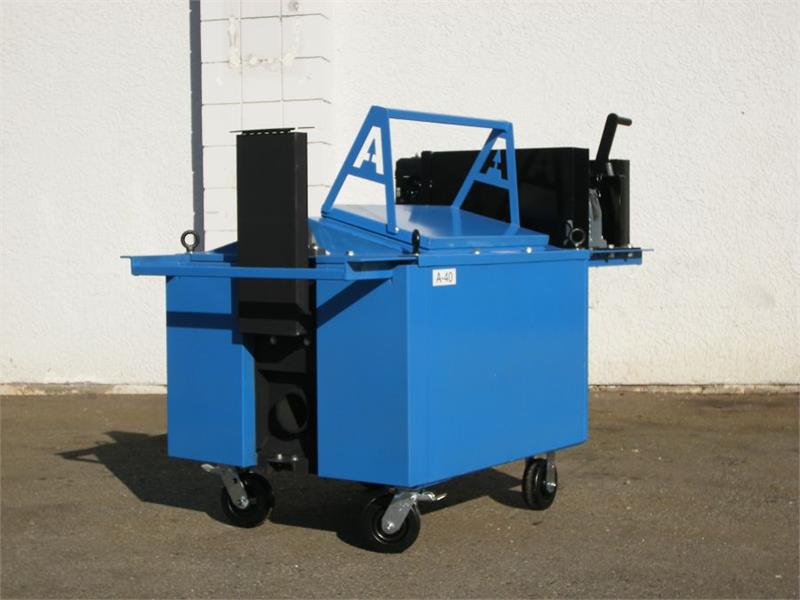

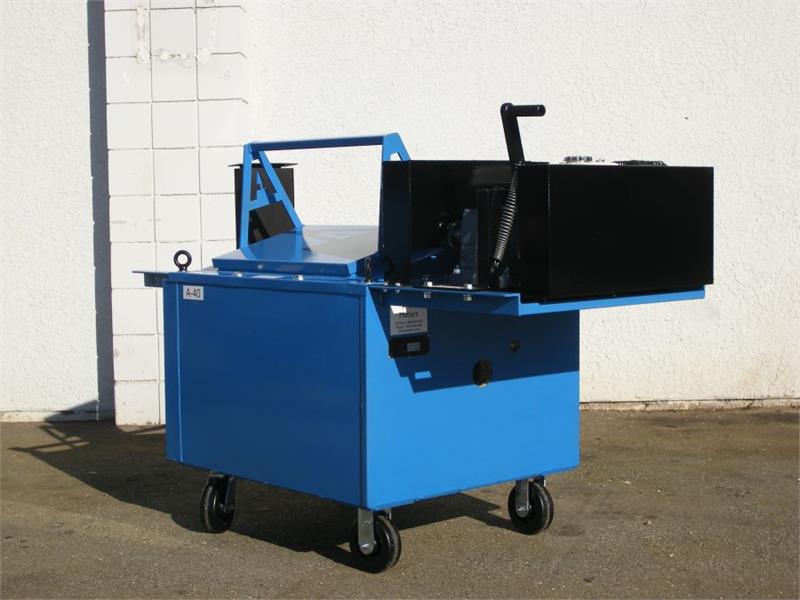

The A-40 is a very compact under-fired melter and has the same oil-less design as its larger brothers which reduces warm-up time to approximately 20 minutes. Extra high temperature insulation permits movement from one roof deck to another without burning the operator. Stainless steel fire tube comes standard
The A-40’s small dimensions allow it to fit into any elevator or through a standard doorway and the interchangeable power pack allows the contractor to purchase the super-quiet electric unit which is suited to a specific job where noise restrictions may be of concern.
SPECIFICATIONS: A-40
|
|---|
| Heat Transfer Oil |
None Required |
| Fire Tube |
4″ sch 80 Stainless Steel Pipe |
| Capacity |
35 US Gallons |
| Agitator |
Honda 4 H.P. Air-Cooled Engine, 110 V Electric or Optional Diesel Engine |
| Overall Dimensions |
L-62″ W-31 3/4″ H-47″ 850 lbs. |
| Burner |
Adjustable Liquid Propane 1 X 300,000 BTU or Optional Beckett Diesel Burner |
| Temperature Controls |
Optional |
| Inner Shell |
3/16″ Rolled Steel |
| Outer Shell |
3/16″ plate |
| Insulated jacket |
1/2″ Super High Temp. plus 2″ High Temp. Fiberglass |
| Shipping Weight |
850 lbs |
Heated Material Output:
- Efficiency 78.9%
- Material Capacity: 35 US gallons
- Heat up time: 30 mins
- 35 gals / .50 hr. x 78.9% = 70 gal. / hr.
|
|
|
