A-210 Melter
|
|
Manufacturer: A&A Melters
|
The A-210 lives up to its’ “High Performance” name tag. Stainless steel fire tubes come standard. Unique air-jacketed construction ensure no product charring.
This U.S. 200 gallon model has a large material handling capacity combined with a fast heat-up time. Your choice of gas, electric or optional Diesel drive agitator. Optional trailer, pump and Auto Temperature controls.Material ready in 45 minutes.

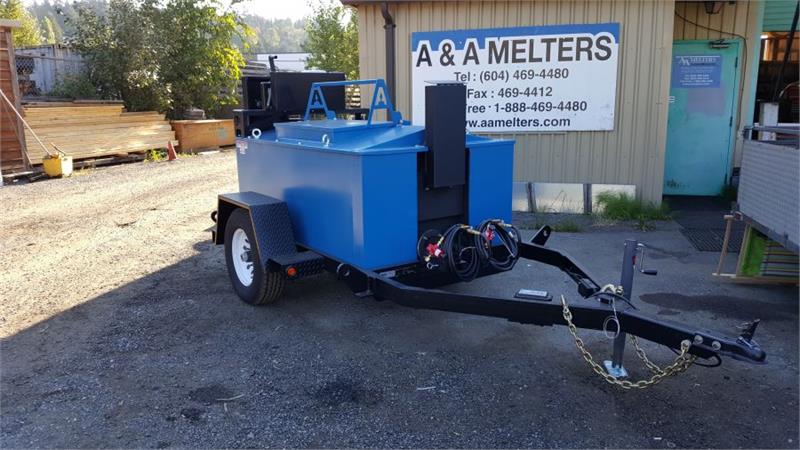

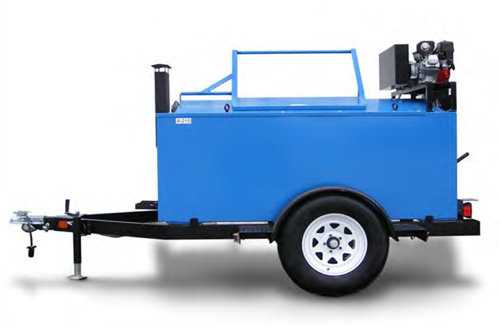

*Shown with optional trailer.
SPECIFICATIONS: A-210
|
|---|
| Heat Transfer Oil |
None Required |
| Fire Tubes |
5″ sch 80 Stainless Steel Pipe |
| Capacity |
200 US Gallons |
| Agitator |

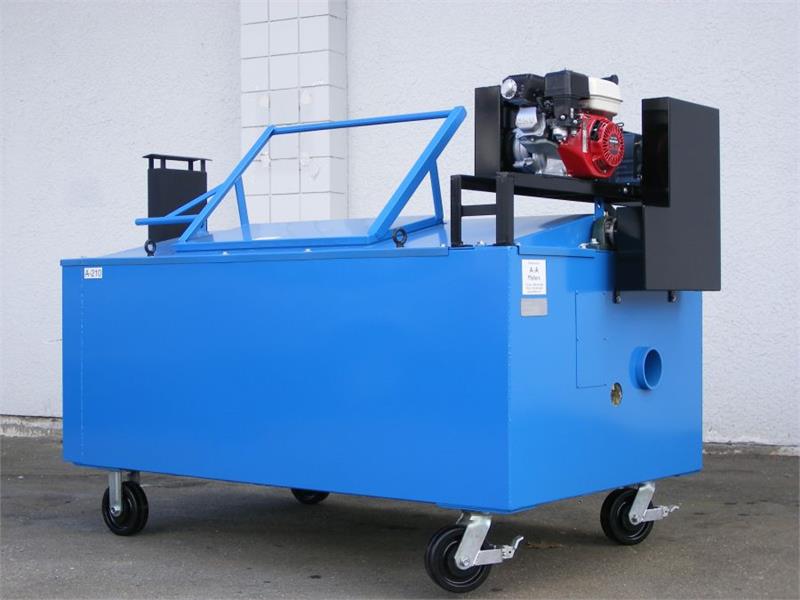

Honda 5.5 H.P. Air-Cooled Engine, 110 Volt Electric or Optional Diesel Engine |
| Overall Dimensions (Melter Only) |
L-88″ W-48″ H-54″ 2,100 lbs. |
| Burner |

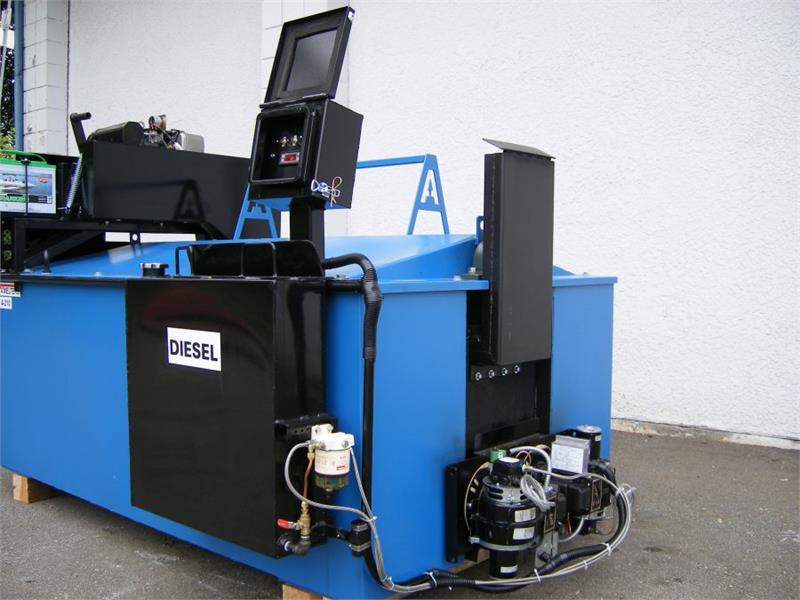

Adjustable Liquid Propane 2 X 360,000 BTU, Optional Beckett Diesel Burners |
| Temperature Controls |
Optional |
| Inner Shell |
1/4″ Rolled Steel |
| Outer Shell |
1/8″ Rolled Steel |
| Insulated jacket |
1/2″ Super High Temp. Plus 2″ High Temp. Fiberglass |
| Suspension 4″ Drop Axle |
5000 lb. Axle |
| Optional Trailer (w/ Melter mounted) |
L-162″ W-79″ H-67″ 2,650 lbs |
| Brakes |
Electric Standard |
| Tow Hitch |
As ordered c/w safety chain |
| Shipping Weight (Melter only) |
2100 lbs |
| Shipping Weight (Trailer only) |
550 lbs |
| Pump |
Optional 1 1/2″ Viking |
| Horizontal Wand Pumping System |
Optional |
| Tires |
2 X 6.00 X 14″ |
| Trailer Chassis |
4″ Steel Channel |
Heated Material Output:
- Efficiency: 78.9%
- Material Capacity: 200 US Gallons | 200 gal/.75 hr x 78.9% = 210.4 gal/hr
- Heat up time: 45 min’s (0.75 hr) | 796.45 L/.75 hr x 78.9% = 836.8 L/hr
|
|
|
